Deutsch-Jozsa Algorithm
Suppose we have a function:
\[f:\{0,1\}^n\rightarrow\{0,1\}^m\]and we model it as an \(\textbf{oracle}\) \(O_f\). That is: we don’t know who \(f\) is but we can query the oracle with an input \(x\) and get \(f(x)\) as an output. A classical problem is: suppose we want to know a property of the function \(f\); how many queries do i need to retrieve such information (if possible)?
\(\textbf{NOTE}:\) this class of problems are the daily bread of cryptanalysis, do you see why?

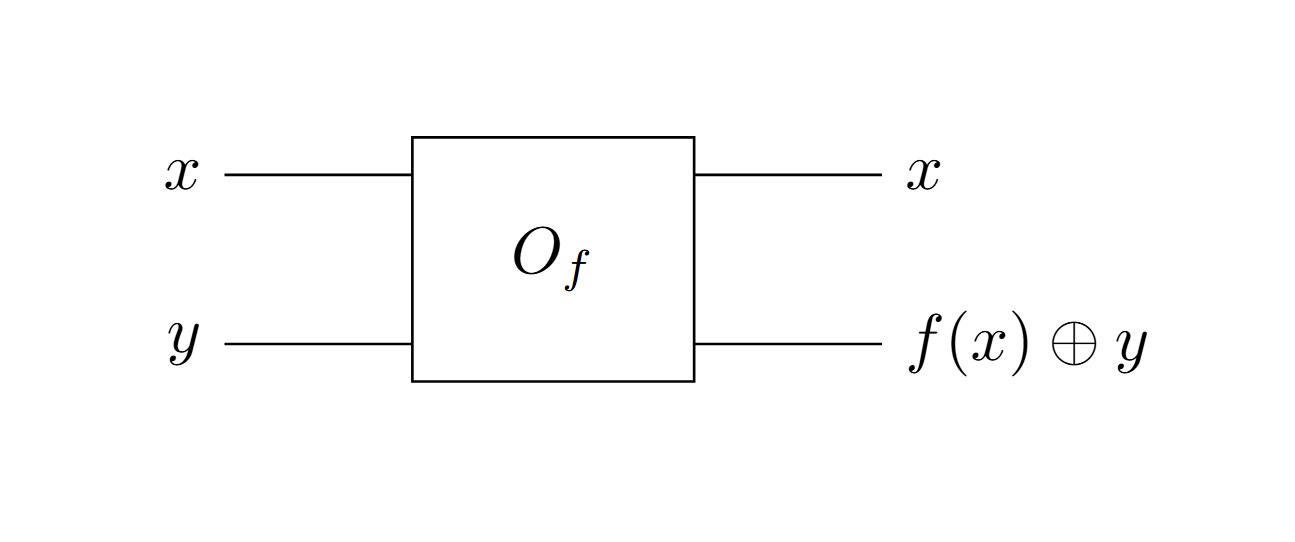

In a quantum setting, we can model \(O_f\) as a gate (thus, it must be reversible) in the following way:
that is:
\[O_f\ket{x}\ket{y}= \ket{x}\ket{f(x)\oplus y}.\]It is actually reversible:
\[O_fO_f\ket{x}\ket{y}=\ket{x}\ket{y}\](an involution, some might say).
- \(x\) is the query;
- \(y\) is called the “\(\textbf{ancillary register}\)” (it is, in fact, an auxiliary register).
Deutsch-Jozsa problem
Problem
Given
\[f:\{0,1\}^n\rightarrow \{0,1\},\]you don’t know \(f\) but you know it can be either
- constant: \(f\equiv 0\) or \(f\equiv 1\);
- balanced: \(\{x\in \{0,1\}^n \mid f(x)=1 \}= \{x\in \{0,1\}^n | f(x)=0 \}.\) Decide whether it is the first or the second case with the minimal amount of queries to the oracle \(\mathcal{O}_f\).
In the classical setting, \(\frac{N}{2}+1\) queries are necessary in the worst case (with \(N=2^n\)). Let’s see the quantum solution, that takes the name of \(\textbf{Deutsch-Josza algorithm}\).
Thorugh preparation, the algorithm begins with the \( n+1 \) qubit state:
\[ \ket{0}^{\otimes n} \ket{1}, \]that is, the first \( n \) qubits are in state \( \ket{0} \), and the last one is \( \ket{1} \). A Hadamard gate is applied to each qubit to obtain the state:
\[ \frac{1}{\sqrt{2^{n+1}}} \sum_{x=0}^{2^n - 1} \ket{x} (\ket{0} - \ket{1}) \]where \( x \) runs over all \( n \)-bit strings, i.e., integers from \( 0 \) to \( 2^n - 1 \).
Applying the oracle \(\mathcal{O}_f\) gives:
Since \( f(x) \in \{0,1\} \), we can simplify:
\[ \frac{1}{\sqrt{2^{n+1}}} \sum_{x=0}^{2^n - 1} (-1)^{f(x)} \ket{x} (\ket{0} - \ket{1}) \]At this point, the last qubit \( \frac{1}{\sqrt{2}}(\ket{0} - \ket{1}) \) is unchanged and can be ignored. The remaining state is:
\[ \frac{1}{\sqrt{2^n}} \sum_{x=0}^{2^n - 1} (-1)^{f(x)} \ket{x} \]We now apply a Hadamard gate to each of the \(n\) qubits. The action of the \( n \)-qubit Hadamard is given by:
\[ \mathrm{H}^{\otimes n} \ket{k} = \frac{1}{\sqrt{2^n}} \sum_{j\in \{0,1\}^n}(-1)^{k \cdot j} \ket{j} \]where \( k \cdot j = k_0 j_0 \oplus k_1 j_1 \oplus \cdots \oplus k_{n-1} j_{n-1} \) is the bitwise dot product modulo 2. Note that we switched to the bitstring representation of \(j\) instead of the integer one, in order to be consistent with the dot product. This is just a notational trick, but it can be useful to get familiar with it, for the future.
Thus, applying Hadamards:
\[ \frac{1}{\sqrt{2^n}} \sum_{x\in \{0,1\}^n} (-1)^{f(x)} \left[ \frac{1}{\sqrt{2^n}} \sum_{y\in \{0,1\}^n} (-1)^{x \cdot y} \ket{y} \right]=\sum_{y\in \{0,1\}^n} \left[ \frac{1}{2^n} \sum_{x\in \{0,1\}^n} (-1)^{f(x)} (-1)^{x \cdot y} \right] \ket{y} \]The probability of measuring state \( \ket{k} \) is:
\[ \left| \frac{1}{2^n} \sum_{x\in \{0,1\}^n} (-1)^{f(x)} (-1)^{x \cdot k} \right|^2 \]In particular, the probability of measuring \( k = 0 \), i.e., \( \ket{0}^{\otimes n} \), is:
\[ \left| \frac{1}{2^n} \sum_{x\in \{0,1\}^n} (-1)^{f(x)} \right|^2 \]This equals 1 if \( f(x) \) is constant, and 0 if \( f(x) \) is balanced.
In other words, the final measurement yields \( \ket{0}^{\otimes n} \) if and only if \( f(x) \) is constant.
\(\textbf{We just resolved the problem with only one (!!) query to the oracle!}\)
